Edit Menu: Components Previous
Page

The Edit Component function is used to modify the parameters associated with a component.

To edit a component, you must first position the cursor somewhere within the interior of the desired component and then press <left mouse> or <Enter>.

In the event of overlapping target components, smaller components are given preference over larger ones.

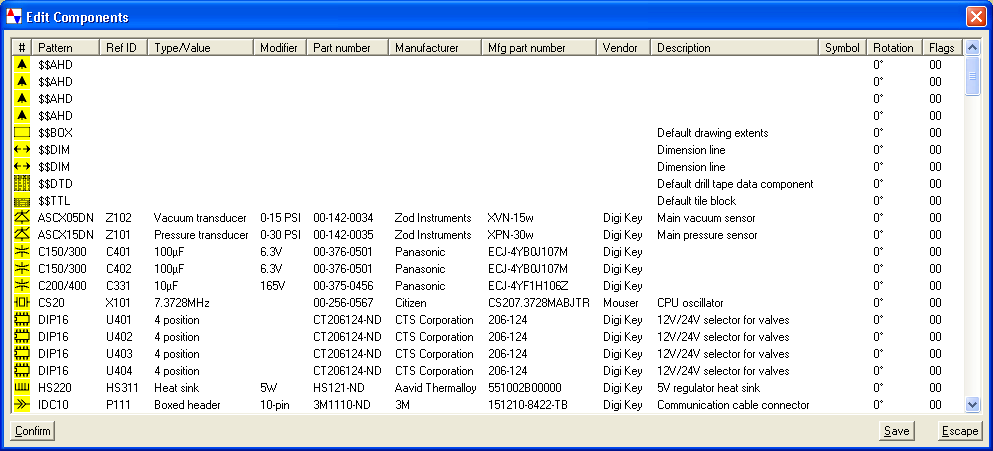

A dialog box will appear listing all of the components in the data file with the selected components parameters highlited. No global editing options are available.





Related functions:

Place Component

Grab Component

Delete Component
