Place Menu: Component Next
Page

The Place Component function is used to fetch a component from the symbols library.

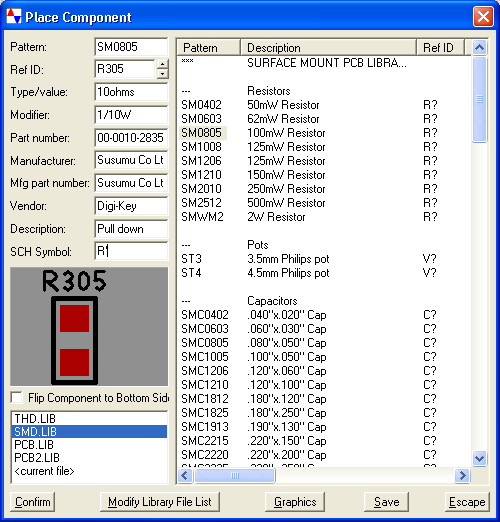

Each time you use this function, a dialog box will appear which will prompt you to enter the several parameters needed to define the desired component.

The default component placement parameters are re-loaded each time you edit an existing component. This feature aids in replication of existing data structures.
