File Menu: Component Pin List Next

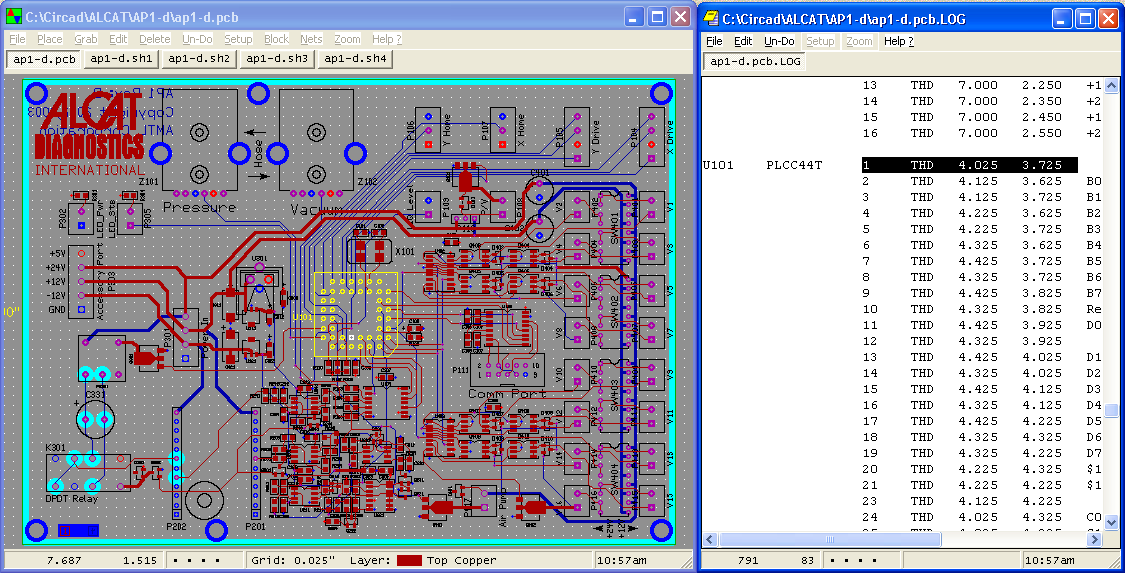

The Component Pin List function is used to generate a listing of all components and their pads. When a components is hovered over in the report, it will be hilighted in yellow on the drawing. If a pin number is hovered over the component will be hilighted in yellow, but the pin will be hilighted in white. If a signal name is hovered over all tracks and pads will be hilighted in white, while the component that contains the signal name will be hilighted in yellow.

Related functions:

Hilight Net

Clear Hilight
