Nets Menu: Hilight Net
Next
Page
The
Hilight Net

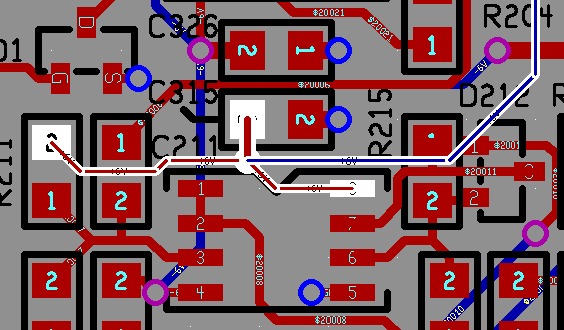

function is used to illuminate all named pads and tracks in a signal net. The center line of tracks will be displayed in the original color to assist in determining what layer the track is on.
Once hilighted, the signal net may be re-named.
Related functions:
Net Scan
