The Setup Options dialog box is used to control various generic CIRCAD parameters.
Click on a tab for detailed information

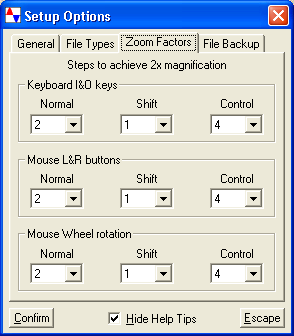

Zoom Factors: The Zoom Factors tab defines the configuration parameters
Keyboard I&O keys Normal - This drop-list provides a selection of possible zoom factors to be used when the <i> or <o> (unshifted or lower case) keys are pressed.
Shift - This drop-list provides a selection of possible zoom factors to be used when the <I> or <O> (shifted or upper case) keys are pressed.
Control - This drop-list provides a selection of possible zoom factors to be used when the <Ctl I> or <Ctl O> (control) keys are pressed.
Mouse L&R keys Normal - This drop-list provides a selection of possible zoom factors to be used when the mouse buttons are clicked in the absence of any simultaneous keystrokes.
Shift - This drop-list provides a selection of possible zoom factors to be used when the mouse buttons are clicked while the shift key on the main keyboard is being held down.
Control - This drop-list provides a selection of possible zoom factors to be used when the mouse buttons are clicked while the control key on the main keyboard is being held down.
Mouse Wheel rotation Normal - This drop-list provides a selection of possible zoom factors to be used when the mouse wheel is scrolled in the absence of any simultaneous keystrokes.
Shift - This drop-list provides a selection of possible zoom factors to be used when the mouse wheel is scrolled while the shift key on the main keyboard is being held down.
Control - This drop-list provides a selection of possible zoom factors to be used when the mouse wheel is scrolled while the control key on the main keyboard is being held down.
