File Menu: Save As... Next

The Save As ... function is used to write the current data file out to disk under a different name or in a different file format.

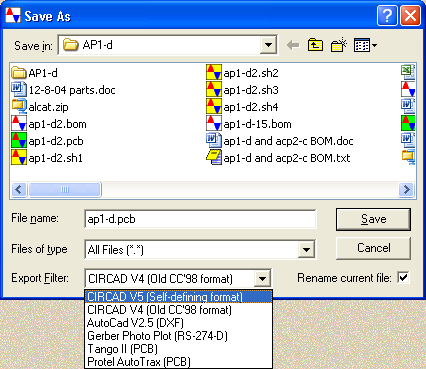

When you select this function, a dialog box will appear which will prompt you to enter the new disk file name. The current file name is shown in the entry box. Below the file name will be a list of export filters that are available for output data translation.

If the newly entered file name already exists on disk, a warning message will appear and you will be prompted to indicate whether you want to overwrite the previous data file, enter a new file name, or escape from the requested function.

Related functions:

Save File

Close File
